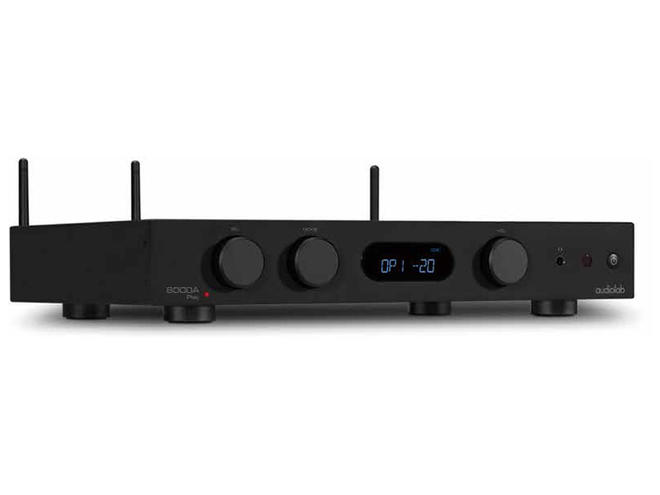

AUDIOLAB

6000A PLAY

ALU-BLACK

ALU-BLACK ALU-SILVER

AMPLIFIER

PRICE 1 099CHF / pcs incl.tax (7,7%) and shipment

Picture gallery

- Gain (max.): +8 dB (Line), +55 dB (Phono MM)
- Input Sensitivity: 720 mV (Line, Volume = 0 dB), 3.1 mV (Phono MM, Volume = 0 dB)
- Input Impedance: 10K (Line), 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD): < 0.0004% (Line, 1 kHz @ 2V, Volume = 0 dB)
- Frequency Response: 20 Hz - 20 kHz (±0.1 dB)
- Output Voltage: 2.3V max. (Volume = 0 dB)
- Output Impedance: 120 Ω
- Signal-to-Noise Ration (S/N): > 110 dB (Line, A-weighted), >76 dB (Phono MM, A-weighted)
- DAC: D to A converter: ES9018K2M
- Total Harmonic Distortion (THD): < 0.0006% (1 kHz @ 0 dBFS)
- Output level (0 dBFS, 1 kHz): 2.05 V
- Max. Sampling Frequency: 192 kHz
- Signal-to-noise ratio (S/N): > 112 dB (A-weighted)
- Digital Filters: Fast Roll-off , Slow Roll-off , Minimum Phase
- Power Amplifier Section:
- Gain: +29 dB
- Rated Max. Power Output: 2x 50 W (8 Ω, THD < 1%), 2x 75W (4 Ω, THD < 1%)
- Frequency Response: 20 Hz - 20 kHz (±0.3 dB)
- Input Sensitivity: 720 mV
- Total Harmonic Distortion (THD): < 0.003% (1 kHz @ 40 W / 8 Ω)
- Signal-to-Noise ratio (S/N): > 110 dB (A-weighted)
- Max. Output Current: 9 A
- Headphone Amplifier:
- Total Harmonic Distortion (THD): < 0.01% (1 kHz, 50 mW)
- Output Impedance: 2.35 Ω
- Load impedance: 20 - 600 Ω
- Standby Power Consumption: < 0.5 W
- Power Requirements: 240 V ~ 50 - 60 Hz, 230 V ~ 50 - 60 Hz, 115 V ~ 50 - 60 Hz, 100 V ~ 50 - 60 Hz

Avaliability

6000A PLAY ALU BLACK

VERY LIMITED

6000A PLAY ALU SILVER

On Request

Size & Weight

NET WEIGHT

7.90 kg

PRODUCT SIZE (WxHxD)

445 x 66 x 300 mm

Colours
