KTX-CSP1
MEASUREMENT MICROPHONE KIT FOR ALPINE OPTIM™8 AND OPTIM™6
PRICE
69.90CHF
/ pcs
incl.tax (7,7%) and shipment
Zoom
Picture gallery
DESCRIPTION
- Capture the most accurate sound system measurements in your vehicle for precise tuning results with Alpine's OPTIM™8 and OPTIM™6 Processors.
- The KTX-CSP1 Mic Kit makes tuning your system a breeze. The ultra-precision microphone is designed to capture a wide frequency range, meaning you’ll get the most accurate sound measurements for optimal tuning adjustments.

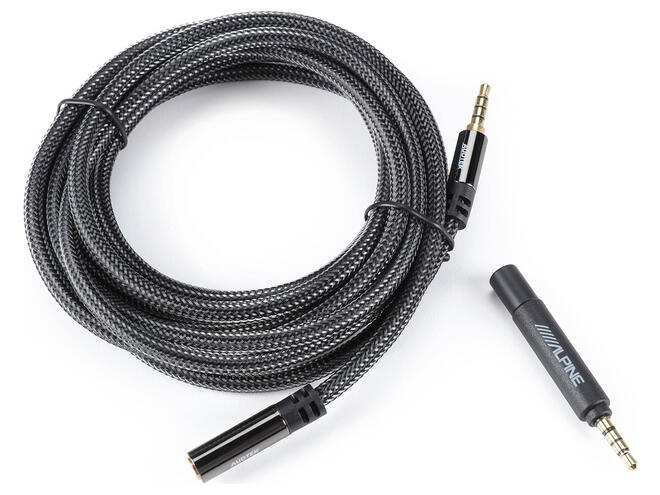

- The KTX-CSP1 Mic Kit includes a 3.5 mm headset jack with a built-in precision microphone and a 6’ auxiliary cable that’s designed to plug directly into Alpine's OPTIM™8 or OPTIM™6 Processors. This allows for easy microphone movements around the vehicle interior to capture the most accurate sound measurements.
- - 3.5 mm headset jack with microphone
- - Recommended use for the PXE-C80-88 (OPTIM™8) and PXE-C60-60 (OPTIM™6)
- - What’s in the Box: 1x Microphone, 1x 6’ Aux Cable
- - Capsule Type: Precision 6 mm electret condenser
- - Polar Response: True Omnidirectional
- - Frequency Response: 18 - 20,000 Hz, ±0.5 dB (calibrated)
- - Impedance: 200 Ω
- - Sensitivity at 1 kHz into 1 kΩ: 10 mV/PA (-40 dBV, ref. 0 dB = 1 V/PA)
- - Maximum SPL for 1% THD @ 1k: 127 dB
- - S/N ratio: 70 dB (A-Weighted, varies depending on host device)
- - Connector: Gold-plated 3.5 mm TRRS
- - Weight: Ultra-light 7.6 grams
DOCUMENTS
CHECK AVAILABILITY
Avaliability
KTX-CSP1
VERY LIMITED
Size & Weight
NET WEIGHT
0.01 kg
PRODUCT SIZE (WxHxD)
0 x 0 x 0 mm
